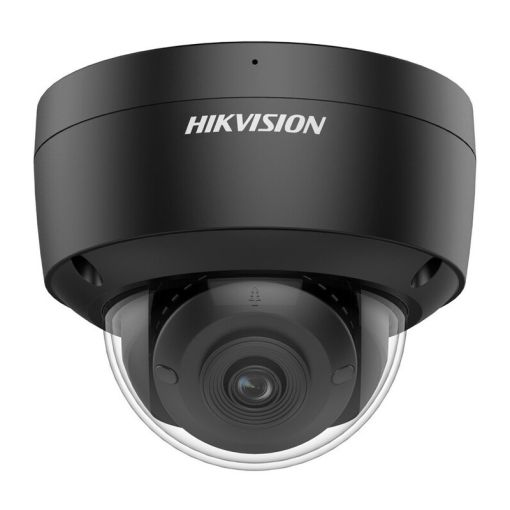

Hikvision DS-2CD2147G2(SU) - ColorVu binnendome 4MP -Zwart

Met name de lichtgevoeligheid maarkt deze camera uniek voor binnen.

Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Shutter Speed 1/3 s to 1/100,000 s
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON)
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 130 dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens
Lens Type 2.8 mm, 4 mm
Focal Length & FOV
2.8 mm, horizontal FOV 106°, vertical FOV 61°, diagonal FOV 127°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
Lens Mount M16
Aperture F1.0
Blue Glass Module Blue glass module to reduce ghost phenomenon
Working Distance
2.8 mm: 2.5 m to ∞
4 mm: 3.5 m to ∞

DORI
DORI
2.8 mm: D: 62 m, O: 24 m, R: 12 m, I: 6 m
4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m

Video
Max. Resolution 2688 × 1520
Main Stream
50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Audio
Environment Noise Filtering -SU: Yes
Audio Sampling Rate -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression -SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-SU: 64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32
to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64 Kbps(AAC)

Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
Built-in Microphone -SU: Yes
Audio
-SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface
type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω,
interface type: non-equilibrium, mono sound
Alarm -SU: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
Hardware Reset Yes

Event
Basic Event
Motion detection (human and vehicle), video tampering alarm, exception (network
disconnected, IP address conflict, illegal login, HDD full, HDD error)
-SU: alarm input and output
Smart Event Scene change detection

Deep Learning Function
Face Capture Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection

General
Power
12 VDC ± 25%
PoE: 802.3af, Class 3

Camera Material Metal
Camera Dimension Ø 121.4 × 100.1 mm (Ø 4.8" × 3.9")
Package Dimension 150 × 150 × 141 mm (5.9" × 5.9" ×5.6")
Camera Weight Approx. 570 g (1.3 lb.)
With Package Weight Approx. 820 g (1.8 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger
capture, send email
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W
Power Interface Ø 5.5 mm coaxial power plug
Web Client Language: English, Dutch
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Software Reset Yes
