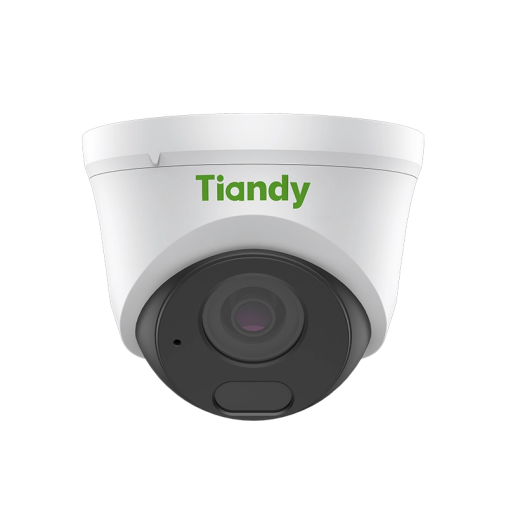

Tiandy Tiandy TC-C35SS - 5MP Turret Varifocale lens

Tiandy TC-C35SS Spec: I5/E/A Camera

• Image Sensor: 1/2.8″ CMOS
• Signal System: PAL/NTSC
• Min. Illumination: Colour: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
• Shutter Time: 1s to 1/100,000s
• Day & Night: Dual IR Cut Filter with Auto Switch
• Wide Dynamic Range: 120dB
• Angle Adjustment: Pan 0~340°, Tilt 0~75°, Rotate 0~360°

Lens

• Lens Type: Motorized
• Focus: 2.8-12mm
• Lens Mount: Φ14
• Aperture: F1.6~F3.3, Fixed
• FOV: Horizontal field of view: 100.4°~26.8°

Illuminator

• IR LEDs: 2
• IR Range: Up to 50m
• Wavelength: 850nm
• White LEDs: N/A

Compression_Standard

• Video Compression: S+265/H.265/H.264/M-JPEG
• Video Bit Rate: 32Kbps~16Mbps
• Audio Compression: G.711A/G.711U/ADPCM_D/AAC_LC
• Audio Bit Rate: 8K~48Kbps


• Max. Resolution: 2592×1944
• Main Stream: PAL: 20fps (2592×1944), 25fps (2560×1920, 2592×1520, 2560×1440, 2048×1036, 1920×1080, 1280×960, 1280×720), NTSC: 20fps (2592×1944), 25fps (2560×1920), 30fps (2592×1520, 2560×1440, 2048×1036, 1920×1080, 1280×960, 1280×720)
• Sub Stream: PAL: 25fps (704×576, 704×288, 640×360, 352×288)
• NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
• Third Stream: 4CIF
• Image Setting: Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
• Image Enhancement: BLC/3D DNR/HLC/Corridor Format
• ROI: Support 7 fixed region of coding
• OSD: 16×16, 24×24,32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total
• 5 Regions
• Picture Overlay: Yes
• Privacy Mask: Yes
• Smart Defog: Yes

Feature

• Alarm Trigger: Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
• Video Analytics: Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, Video Abnormal, Audio Abnormal, Heat Map
• Early Warning (EW): N/A
• Intelligent Coding: N/A
• Intelligent Image: N/A
• Intelligent Alarm: N/A

Network

• ANR: Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP,
• IGMP, QoS, PPPoE
• System Compatibility: ONVIF (PROFILE S/T), SDK, CGI, P2P
• Remote Connection: ≤7
• Client: Easy7, EasyLive
• Web Version: Web6

Interface

• Communication Interface: 1 RJ45 10M/ 100M Self-adaptive Ethernet port
• Audio: 1/1, Mic in
• Alarm: 2/1
• Reset Button: Yes
• On-board storage: Built-in MicroSD card slot, up to 128 GB

General

• Firmware Version: N/A
• Web Client Language: 15 languages – English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Farsi, Arabic
• Operating Conditions: -35℃～65℃, 0～95% RH
• Power Supply: DC12V±20%/PoE
• Power Consumption: MAX: 8.5W(12V) MAX: 10W(POE)
• Protection: IP66
• Heater: N/A
• Dimensions: Φ132×100 mm (Φ5.2*3.94 inch)
• Weight: 0.65Kg (1.43lb)
