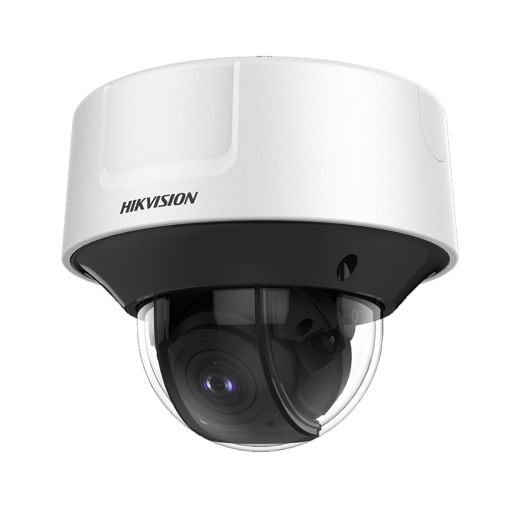

Hikvision DS-2CD5546G0-IZS - 5-Line Varifocal Dome 4MP 8-32MM

Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
• Shutter Speed1 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range140 dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

• Lens
• FocusAuto, semi-auto, manual
• Lens TypeMotorized lens, 2.8 to 12 mm and 8 to 32 mm optional
• FOV

  2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°

  8 to 32 mm, horizontal FOV 37.7° to 15.2°, vertical FOV 21° to 8.6°, diagonal FOV 43.3° to 17.24°

• Aperture

  F1.2 to 2.5

  8 to 32 mm: F1.8, Constant F1.8 throughout the zoom range

• Lens MountIntegrated
• Aperture TypeP-iris

• Illuminator
• IR Range2.8 to 12 mm: up to 30 m; 8 to 32 mm: up to 50 m
• Wavelength850 nm

Video

• Max. Resolution2560 × 1440
• Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video CompressionMain stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream support
• H.265+Main stream support
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream, and dynamic face tracking

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)

• Network
• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Smooth StreamingYes
• User/HostUp to 32 users, 3 levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
• Network Storage

  microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
• Web BrowserPlug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
• Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

• Image
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
• Target CroppingYes
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• SNR≥52dB

• Interface
• Audio1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
• Alarm1-ch input, 1-ch output (up to 24 VDC 1A or 110 VAC 500 mA)
• Video Output1Vp-p composite output (75 Ω/CVBS)
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Power Output12 VDC, max. 200 mA
• Interface StyleConnector panel
• HeaterHeater -H: yes

• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing detection, up to 4 lines configurable

  Intrusion detection, up to 4 regions configurable

  Region entrance detection, up to 4 regions configurable

  Region exiting detection, up to 4 regions configurable

  Unattended baggage detection, up to 4 regions configurable

  Object removal detection, up to 4 regions configurable

  Face detection: detects faces and upload images

  Scene change detection, audio exception detection, defocus detection

• CountingCounting

• General
• Linkage Method

  Trigger recording：memory card, network storage, pre-record and post-record

  Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email

  Trigger notification: HTTP, ISAPI, alarm output, Email

• Firmware Version5.6.0
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
• Embedded Open PlatformYes. The camera supports installation and running up to 4 extra applications.
• Storage Conditions-30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)
• Startup And Operating Conditions

  -IZS: -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)

  -IZHS: -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing)

• Stroomvoorziening12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3at, class 4)
• Power Consumption And Current

  -IZS:

  With extra load: 12 VDC, 1.27 A, max. 15.2 W; PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, class 4

  Without extra load: 12 VDC, 1.05 A, max. 12.6 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.23 A, class 4

  -IZHS:

  With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4

  Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4

  with extra load\" means that an extra device is connected to and powered by the camera."

• Camera Dimension

  Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″)

  With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)

• Camera Weight

  Camera: 1450 g (3.2 lb.)

  With package: 1950 g (4.3 lb.)

• Approval
• EMC

  IC: IC-VoC(ICES-003 Issue 7:2020),

  FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

  KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28),

  CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),

  RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015

• Safety

  CB: IEC 60950-1,

  UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014

• Environment

  CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)

  REACH SVHC: Regulation (EC) No 1907/2006

• ProtectionIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
