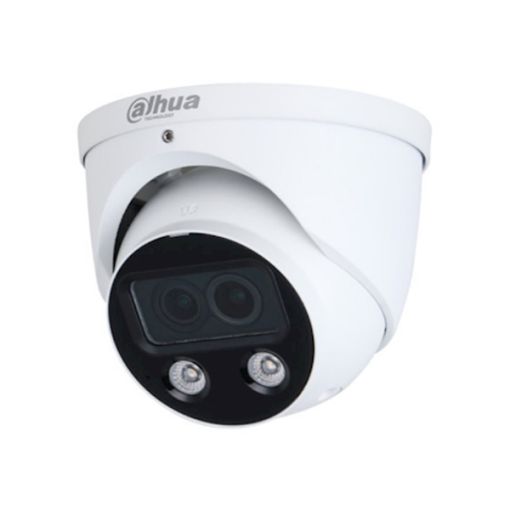

Dahua IPC-HDW5449H-ASE-D2 - Full-color 4MP Dual Lens, Fixed-focal Turret

IPC-HDW5449H-ASE-D2
|
Voeg een review toe
  • Gratis verzending

    Bij een minimale bestelwaarde van 30 euro

  • Hulp nodig?

    Stel je vraag via WhatsApp, telefoon of mail

  • Betaalwijze

    Via Paypal, Visa, Mastercard, Ideal, Bancontact en meer.

Bezig met laden...

Productinformatie Dahua IPC-HDW5449H-ASE-D2 - Full-color 4MP Dual Lens, Fixed-focal Turret

Plus- en minpunten

Altijd scherp kleur beeld, d.m.v. 2 lenzen en 2 belichtingstechnieken

Met microfoon

Veel detectie mogelijkheden

Geen licht en geluid om te waarschuwen

Kenmerken

EAN 6923172540287
Merk Dahua
Kleur Wit
Gewicht 0.75 kg
Type camera
Turret
Draadloos Nee
NDAA complaint
Nee
Buiten geschikt
Ja
Audio
Ingebouwde microfoon
Power over Ethernet (PoE)
Ja
NAS ondersteuning
Ja
Afmetingen 11.1 x 12.2 x 12.2 cm

Korte productbeschrijving

Deze Dahua IPC-HDW5449H-ASE-D2 camera is uniek door het gebruik van twee lenzen.  1 lens werkt met infrarood en de ander is een zeer lichtgevoelige lens. Hierdoor kan de camera een optimaal kleur beeld creeren zonder verlies van diepte.

  • Multi-Spectrum Fusion - een combinatie van zichtbaar en infrarood beeld
  • Full-color - deze technologie kan een helder kleurenbeeld weergeven, zelfs in een omgeving met weinig licht
  • Ingebouwde WEB-server en bewegingsdetectie
  • Gegevenssnelheid voor H.264-codec: 32 Kbps - 8 Mbps; H.265: 19 Kbps - 8 Mbps
  • Meerdere toegang vanaf een externe computer op een LAN of internet
  • Bewegingsdetectie kan automatisch waarschuwings-e-mails verzenden met vastgelegde afbeeldingen
  • Triple stream - drie datastreams met verschillende bandgroottes
  • Micro SD-kaartsleuf tot 256 GB
  • Geïntegreerde microfoon
  • IVS-videoanalyse
  • Ondersteuning voor SMD 3.0 bewegingsdetectie
  • Omschrijving
  • Reviews
  • Downloads
  • FAQ

Camera

  • Image Sensor 1/1.8" + 1/2.8" CMOS
  • Max. Resolution 2688 (H) × 1520 (V)
  • ROM 128 MB RAM 1 GB
  • Scanning System Progressive
  • Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
  • Min. Illumination 0.0002 lux @F1.0
  • S/N Ratio > 56 dB
  • Illumination Distance 50 m (164.04 ft)
  • Illuminator On/Off Control Auto; manual
  • Illuminator Number 2 (IR light); 2 (warm light)

Pan/Tilt/Rotation Range

  • Pan: 0°–360°
  • Tilt: 0°–78°
  • Rotation: 0°–360°

Lens

  • Lens Type Fixed-focal
  • Lens Mount M16 + M12
  • Focal Length 2.8 mm; 3.6 mm; 6 mm
  • Max. Aperture F1.0 + F1.6

Field of View

  • 2.8 mm: Horizontal: 97°; Vertical: 48°; Diagonal:
  • 115°
  • 3.6 mm: Horizontal: 75°; Vertical: 39°; Diagonal: 87°
  • 6 mm: Horizontal: 47°; Vertical: 25°; Diagonal: 56°
  • Iris Control Fixed
  • Close Focus Distance
  • 2.8 mm: 2 m (6.56 ft)
  • 3.6 mm: 2 m (6.56 ft)
  • 6 mm: 2.5 m (8.20 ft)
  • DORI

Distance

  • Lens Detect Observe Recognize Identify
  • 2.8 mm 58.2 m(190.9 ft)23.3 m(76.4 ft)11.6 m(38.1 ft)5.8 m(19 ft)
  • 3.6 mm 70.3 m(230.6 ft)28.1 m(92.2 ft)14.1 m(46.3 ft)7.0 m(22.3 ft)
  • 6 mm 116.1 m(380.9 ft)46.5 m(152.6 ft)23.2 m(76.1 ft)11.6 m(38.1 ft)

Smart event

  • IVS Abandoned object; missing object
  • Heat Map Yes
  • Professional, intelligent IVS (Perimeter Protection)
  • Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection
  • of vehicle and human); loitering detection,
  • people gathering, and parking detection
  • SMD 3.0 Less false alarm, longer detection distance

Face Detection

  • Face detection; track; snapshot; snapshot
  • optimization; optimal face snapshot upload; face
  • enhancement; face exposure; face attributes
  • extraction including 7 attributes (gender, age, glasses, expressions, skin color, mask, and beard)
  • and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused)
  • face snapshot set as face or one-inch photo;
  • snapshot strategies (realtime snapshot, quality priority and optimization snapshot); face angle filter
  • optimization time setting

People Counting

  • Tripwire people counting and people counting in area; generating and exporting report (day/
  • month/year); queue management;
  • 4 rules can be set for tripwire, people counting in area and queue management
  • Intelligent Search
  • Work together with Smart NVR to perform refine
  • intelligent search, event extraction
  • merging to event videos

Video

  • Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
  • Smart Codec Smart H.265+; Smart H.264+
  • AI Coding AI H.265; AI H.264
  • Video Frame Rate
  • Main stream: 2688 × 1520@(1–25/30 fps)
  • Sub stream: 704 × 576@(1–25 fps)/704 × 480@
  • (1–30 fps)
  • Third stream: 1920 × 1080@(1–25/30 fps)
  • *The values above are the max. frame rates of each
  • stream; for multiple streams, the values will be
  • subjected to the total encoding capacity.
  • Stream Capability 3 streams

Resolution

  • 4M (2688 × 1520);
  • 1080p (1920 × 1080);
  • 1.3M (1280 × 960);
  • 720p (1280 × 720);
  • D1 (704 × 576/704 × 480);
  • VGA (640 × 480);
  • CIF (352 × 288/352 × 240)
  • Bit Rate Control CBR/VBR
  • Video Bit Rate H.264: 32 kbps–8192 kbps
  • H.265: 19 kbps–8192 kbps
  • Day/Night Color/B/W
  • BLC Yes
  • HLC Yes
  • WDR DWDR
  • White Balance Auto; natural; street lamp; outdoor; manual;
  • regional custom
  • Gain Control Auto; manual
  • Noise Reduction 3D NR
  • Motion Detection OFF/ON (4 areas, rectangular)
  • Region of Interest (RoI) Yes (4 areas)
  • Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p
  • resolution and lower)
  • Mirror Yes
  • Privacy Masking 4 areas

Audio

  • Built-in MIC Yes
  • Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
  • Alarm
  • Alarm Event
  • No SD card; SD card full; SD card error; network
  • disconnection; IP conflict; illegal access; motion
  • detection; video tampering; tripwire; intrusion; fast
  • moving; abandoned object; missing object; loitering
  • detection; people gathering; parking detection;
  • scene changing; audio detection; voltage detection;
  • face detection; people counting in area; stay
  • detection; people counting; people number error
  • detection; security exception; defocus detection;
  • people number alarm; queue time alarm

Network

  • Network Port RJ-45 (10/100 Enhancement Base-T)
  • SDK and API Yes
  • Cyber Security
  • Video encryption; configuration encryption; Digest;
  • WSSE; account lockout; security logs; generation
  • and importing of X.509 certification; HTTPS;
  • trusted boot; trusted execution; trusted upgrade
  • Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP;
  • FTP; DHCP; DNS; NTP; Multicast; DDNS
  • Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
  • Genetec; P2P
  • Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

  • IE: IE8, IE9, IE11
  • Chrome
  • Firefox
  • Management Software Smart PSS; DSS; DMSS
  • Mobile Client iOS; Android
  • Certification
  • Certifications
  • CE-LVD: EN62368-1
  • CE-EMC: Electromagnetic Compatibility Directive
  • 2014/30/EU
  • FCC: 47 CFR FCC Part 15, Subpart B
  • UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-
  • 1-14

Port

  • Audio Input 1 channel (RCA port)
  • Audio Output 1 channel (RCA port)
  • Alarm Input 1 channel in: 5mA 3V–5 VDC
  • Alarm Output 1 channel out: 300mA 12 VDC

Power

  • Power Supply 12 VDC (±30%); PoE (802.3af); ePoE
  • Power Consumption
  • Basic: 3.9 W (12 VDC); 4.6 W (PoE)
  • Max. (H.265+IR and Warm light on): 9.3 W (12 VDC);
  • 10.5 W (PoE)

Environment

  • Operating Temperature –40 °C to +60 °C (-40 °F to +140 °F)
  • Operating Humidity ≤ 95%
  • Storage Temperature –40 °C to +60 °C (-40 °F to +140 °F
